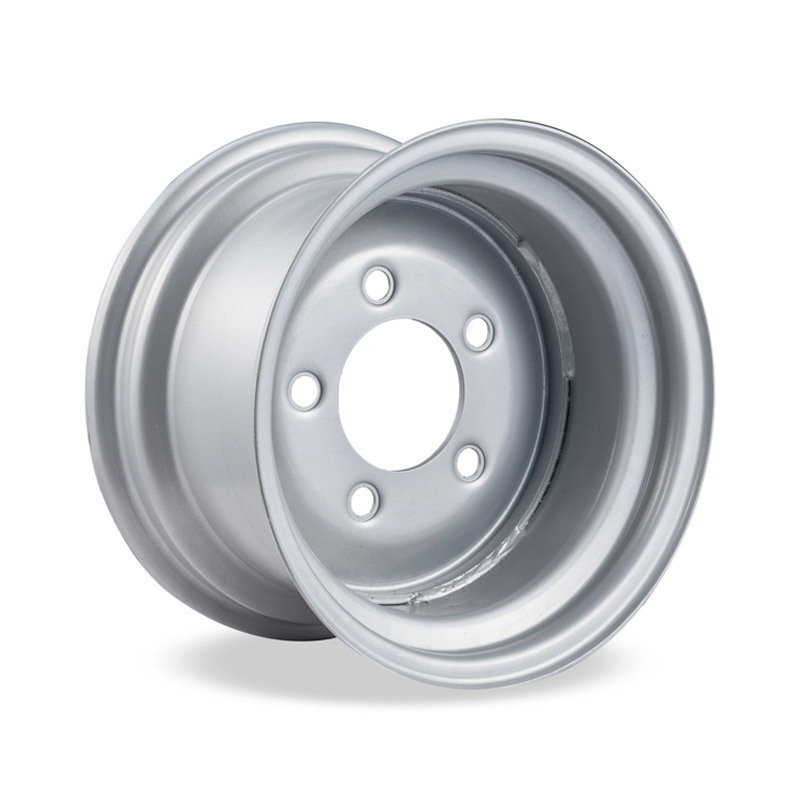

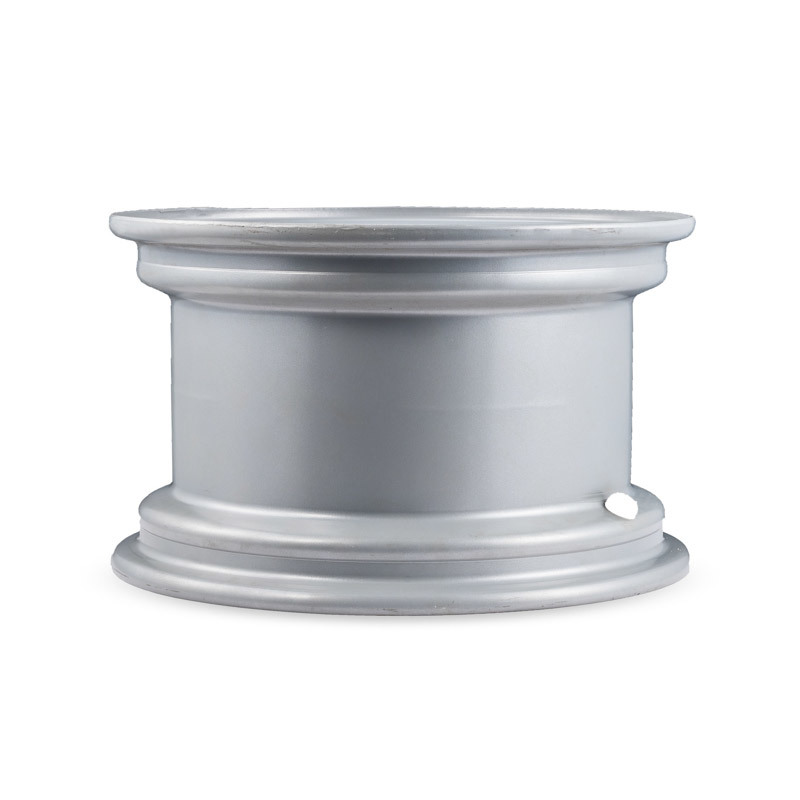

农用轮毂

关键词：

农用轮毂

产品分类：

滚轮式

E-mail：

nancyliu@jiangsuherui.com

更多产品

在线询价

规格 D*A	分度圆B（mm）	中心孔C（mm)	轮毂偏距a（mm)	螺栓孔E（mm）	适配轮胎
10x6.0 10x7.0 10x8.0	4-φ100	φ64/φ72	-10~+35	4-φ14.5-60°	20x8.00-10 18x9.5-10 20x11-10
	4-φ101.6	φ64/φ72		4-φ14.5-60°
	4-φ130	φ81		4-φ15
	5-φ114.3	φ72/φ81		5-φ14.5-60°
	5-φ139.7	φ101.6		5-φ14.5-60°
	6-φ120	φ80		6-φ13
	6-φ152.4	φ117.6		6-φ14.5-60°
12x4.0 12x5.0 12x6.0 12x7.0 12x8.0 12x8.5 12x10.5	4-φ100	φ64/φ72	-10~+55	4-φ14.5-60°	4.80-12 6.00-12 21x8-12 10.0/80-12 23x10-12 23x9.5-12 26x12-12
	4-φ101.6	φ64/φ72		4-φ14.5-60°
	4-φ130	φ81		4-φ15
	4-φ130	φ85		4-φ18.5-R14
	5-φ114.3	φ79.5		5-φ13.5
	5-φ114.3	φ72/φ81		5-φ14.5-60°
	5-φ139.7	φ101.6		5-φ14.5-60°
	5-φ140	φ110		5-φ15
	5-φ140	φ94		5-φ18.5-60°
	6-φ120	φ80		6-φ13
14x4.0 14x5.0 14x6.0 14x7.0	4-φ130	φ85	-15~+45	4-φ18.5-R14	155R14 185R14 215R14 6.00-14
	6-φ120	φ80		6-φ13
	5-φ114.3	φ72/φ81		5-φ14.5-60°
	5-φ140	φ110		5-φ15
	5-φ140	φ94		5-φ18.5-R14
	5-φ170	φ135		6-φ18
	6-φ205	φ161		6-φ21.5-R16
15x3.0 15x5.0 15x6.0 15x7.0 15x8.0 15x10.0 15x13.0	4-φ95	φ63.5	-55~+105	4-φ15-60°	4.00-15 6.5-15 7.5-15 10.5-15 11L-15 12.6-15 31x15.5-15
	6-φ120	φ50		6-φ13.5
	5-φ140	φ110		5-φ15
	6-φ140	φ110		6-φ15
	10-φ140	φ94		10-φ17.5
	6-φ150	φ120		6-φ13.5
	6-φ152.4	φ117.5		6-φ15
	8-φ203.2	φ152.4		8-φ17.5
	6-φ205	φ161		6-φ21.5-R16
15.3x9.00	5-φ140	φ94	-10~+25	5-φ18.5-R14	12.0/75-15.3
	6-φ152	φ117		6-φ17-90°
	6-φ162	φ120		5-φ16
	6-φ205	φ161		6-φ21.5-R16
15.5x13	6-φ170	φ136	-50~+80	6-φ18	400/60-15.5
15.5x13	6-φ205	φ161	-50~+80	6-φ21.5-R16	400/60-15.5
16x4.5 16x5.0 16x5.5 16x6.0 16x8.0	6-φ150	φ110	-35~+65	6-φ13	5.5-16 6.5-16 7.5-16 7.5-16 9.5-16
	4-φ152	φ110		4-φ20
	6-φ152.4	φ117.5		6-φ15
	6-φ170	φ136		6-φ18
	6-φ180	φ140		6-φ17
	6-φ190	φ140		6-φ19
	8-φ203.2	φ152.4		8-φ17.5
	5-φ205	φ158		5-φ17
	6-φ205	φ161		6-φ21.5-R16
16.1x11 16.1x14	6-φ190	φ140	-110~+125	6-φ19	14L-16.1 16.5-16.1
	6-φ152	φ117		6-φ15
	8-φ203.2	φ152.4		4-φ14.5-60°
	6-φ205	φ161		6-φ21.5-R16
16.5x8.25 16.5x9.75	6-φ150	φ90/φ110	-60~+75	6-φ15	260/70R16.5 300/70R16.5
	6-φ170	φ136		6-φ18
	6-φ152.4	φ117.5		6-φ15
	6-φ298	φ254		6-φ20
17x13 17x16	6-φ190	φ140	-65~+155	6-φ21.5-R16	420/55-17 19.0/45-17
17x13 17x16	8-φ203.2	φ152.4	-65~+155	8-φ17	420/55-17 19.0/45-17
18x8.0 18x9.0 18x11 18x13	5-φ139.7	φ101.6	-95~+125	5-φ13.5	10.5/80-18 11/80-18 12.5/80-18 15.0/70-18
	6-φ150	φ90		6-φ15
	6-φ152.4	φ117.4		6-φ15
	6-φ170	φ135		6-φ17
20x7.0 20x10.0 20x11.0 20x13.0	6-φ120	φ90	-95~+125	6-φ15	8.3-20 11.2-20 340/65R20 420/65R20
	6-φ152.4	φ117.4		6-φ15
	6-φ170	φ135		6-φ17
	8-φ203.2	φ152.4		8-φ17
	6-φ205	φ161		6-φ17
	9-φ241.3	φ201.6		9-φ17.5
22.5x8.25 22.5x11.75 22.5x13 22.5x15	6-φ152.4	φ117.4	-95~+125	6-φ15	275/70R22.5 385/65R22.5 445/65R22.5 495/45R22.5
	6-φ170	φ135		6-φ17
	8-φ203.2	φ152.4		8-φ17
	6-φ218	φ160		6-φ20.6
	8-φ275	φ221		8-φ21
	10-φ335	φ281		10-φ26
24x8.0 24x10.0 24x11.75 24x13.0	5-φ140	φ110	-110~+65	5-φ15	9.5-24 11.2-24 13.6-24 14.9-24
	6-φ190	φ140		6-φ21
	6-φ152.4	φ117.4		6-φ15
	6-φ170	φ135		6-φ17
	8-φ203.2	φ152.4		8-φ17
	6-φ205	φ161		6-φ21.5-R16
	8-φ275	φ221		8-φ21
	10-φ335	φ281		10-φ26
24.5x13	6-φ190	φ140	-125~+135	6-φ21	15.5-24.5
	6-φ152.4	φ117.4		6-φ15
	8-φ275	φ221		8-φ21
	10-φ335	φ281		10-φ26
26x11	6-φ170	φ135	-160~+80	6-φ17.5	12.4-26
26x11	8-φ203.2	φ6152.4	-160~+80	8-φ19.5	12.4-26
28x8 28x11 28x15	6-φ165	φ120	-110~+135	6-φ20	9.5-28 12.4-28 16.9-28
	6-φ180	φ140		6-φ17
	6-φ190	φ140		6-φ17
	8-φ203.2	φ152.4		8-φ17
	8-φ275	φ221		8-φ21
	10-φ335	φ281		10-φ21
